iCare EIDON AF

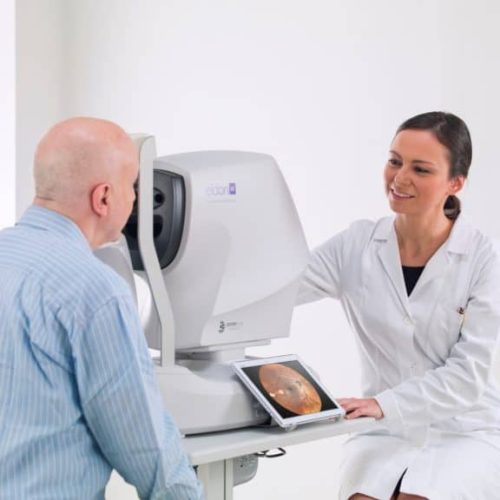

iCare EIDON AF blue autofluorescence confocal fundus imaging system

Key features

  • TrueColor, blue autofluorescence, infrared and RGB channels confocal images
  • Panoramic view of the retinal autofluorescence (up to 110°)
  • High details and contrast in the same device
  • Short exam time and enhanced patient comfort
  • Easy to use, speeds up patient workflow
Category:

iCare EIDON AF TrueColor high-resolution confocal fundus retinal imaging system with blue autofluorescence (FAF)

iCare EIDON AF TrueColor confocal scanner offers the best of iCare EIDON technology with the added advantage of autofluorescence imaging capabilities. The fully automated scanner captures high resolution, accurate imaging using multiple modalities — TrueColor, red and blue imaging, red-free, infrared and blue autofluorescence. The cutting-edge device obtains excellent images in pupils as small as 2.5 mm.

The quick and non-invasive autofluorescence imaging technique improves patient comfort and experience. With a fully computer-assisted acquisition mode, any staff member can run tests, which can help reduce waiting time and aid in improving workflow efficiency. This device truly offers the best to both patients and eyecare professionals.



“EIDON AF is able to perform Blue Autofluorescence in one shot, not disturbing too much the patient, easily and automatically, allowing us to speed up the workflow in the clinic. ” – Giovanni Staurenghi, MD, Luigi Sacco Hospital, Milan, Italy



Multiple modalities for a complete picture

iCare EIDON AF obtains multiple types of high value information from multiple imaging modalities to help determine an accurate diagnosis. White LED illumination provides high-quality TrueColor images, Red-free filtering enhances visualization of retina vasculature, blue images provide improved view of the Retinal Nerve Fiber Layer (RNFL) and red channel allows to penetrate in the deeper layers towards the choroid. Infrared light provides detailed information corresponding to the choroid. Autofluorescence allows the assessment of the Retinal Pigment Epithelial (RPE) layer integrity.



The advantage of wide field of view acquisition capability

iCare EIDON AF offers the added advantage of capturing high quality Widefield images, up to 160°, thanks to its unique mosaic functionality. This capability, available for all the different imaging modalities (TrueColor, IR, FAF) plays a crucial part in supporting eyecare professionals discover, diagnose, document, and treat ocular pathologies that may first present in the periphery.



Fast and fully automated retinal imaging process

In the automatic mode, the scanner auto-aligns to a patient’s pupil, focuses on the retina, and captures high-quality, accurate images in any of the imaging modalities available: IR and/or color and/or FAF, allowing any staff member to run tests effortlessly. The manual mode offers improved versatility — it allows one to customize the management of the focus, concentrate on specific layers of the fundus and go wider in periphery using the external fixation target. The easy-to-use and compact imaging device speeds up patient workflow efficiently.

Patient comfort and convenience

The quick examination time makes it an easy, and comfortable experience for patients. The non-invasive Fundus Autofluorescence (FAF) imaging technique used in the iCare EIDON  AF retinal imager uses a single flash of light which ensures maximum patient comfort. The images can be captured even in a pupil as small as 2.5 mm, making it possible to obtain high-quality images without dilation.

Image sharing and viewing made easy

EIDON AF multi-touch tablet makes magnification and review easy. Additionally, EIDON AF Remote Viewer (RV) makes also remote data review effortless, allowing any computer or laptop on the same local area network (LAN) to review remotely EIDON AF images, enabling data access and detailed analysis on multiple review stations.

Technical Specifications

Fundus Imaging System Features
Non-mydriatic minimum pupil size 2.5 mm
Field of view (measured from the center of the eye)
Individual image 90°
Mosaic (up to nine images) up to 160°
Sensor resolution 14 Mpixel (4608 x 3288)
Light sources
White LED 440 – 650 nm
Infrared LED 825 – 870 nm
Blue LED 440-475 nm
Imaging modalities
TrueColor
Infrared
Infrared RGB channels separation*
Fundus Autofluorescence
Other features
Working distance 28 mm
Automatic operation auto-alignment, auto-focus, auto-exposure, auto-capture
Auto-focusing adjustment range -12D to +15D
Resolution 60 pixel/deg
Optical resolution on the retina 15 microns
Pixel pitch 4.9 micron
Fixation targets Internal/External
Dynamic Programmable Internal Fixation Target Central, Nasal, Temporal, Central-Nasal, Superior, Inferior, Superior-Temporal, Superior-Nasal, Inferior-Temporal, Inferior-Nasal
Internal computer
Display Tablet operated, with multi-touch, color display
Hard drive SSD,480 GB
Interfaces Available ports: USB port x 2, Gigabit Ethernet Port x 1
Export/Import jpeg, pdf, DICOM**
Dimensions/Power supply
Size (WxHxD) 360 mm X 590 mm X 620 mm / 14.2’’ x 23.2’’ x 24.4’’
Weight 25 Kg (55 lbs)
Related Voltage 100-240 VAC
Frequency 50-60 Hz
Power consumption 80 W
Electrical Class IEC 60601-1 Class I
*digital filters
**optional
